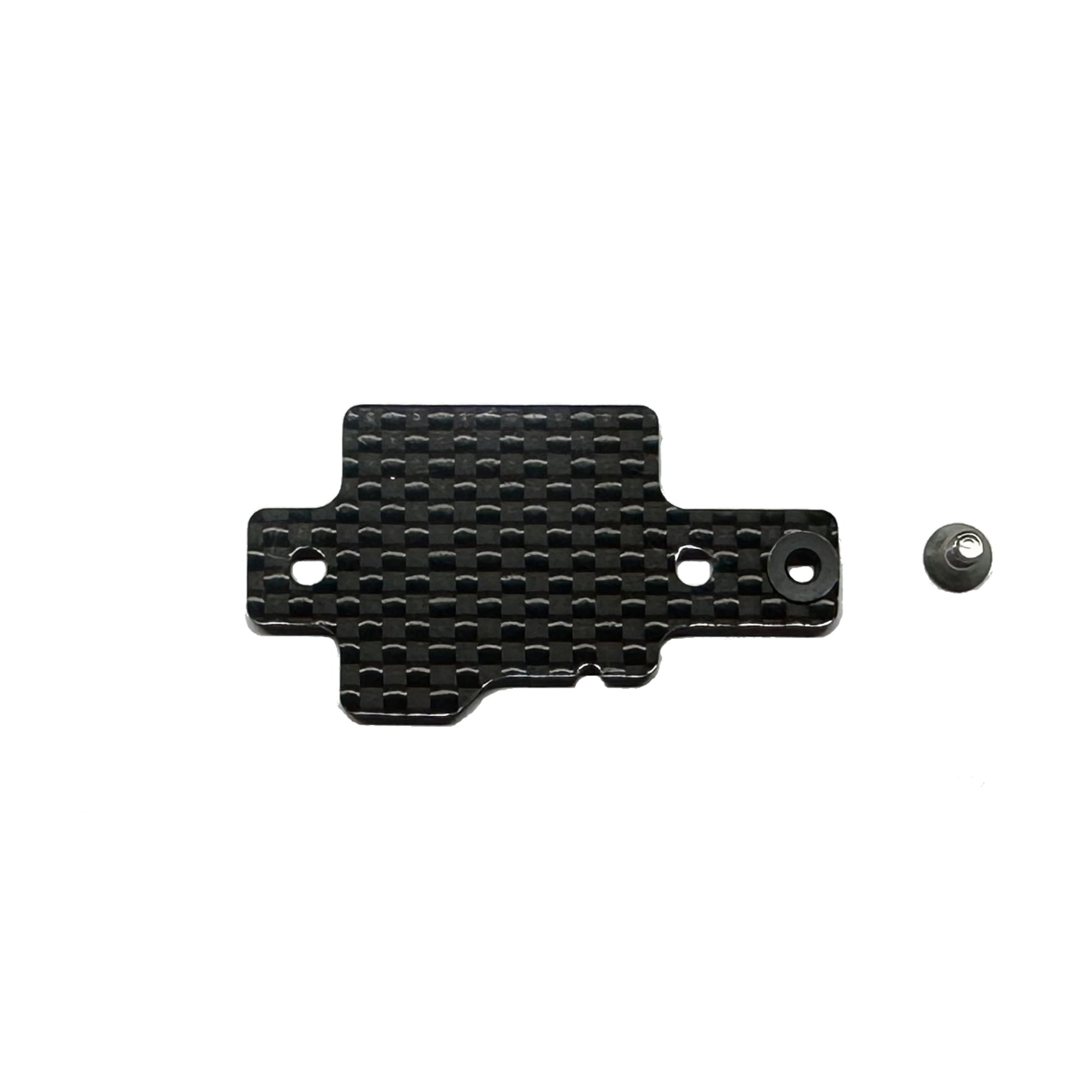

Krazed Builds Center Lock Servo Riser Plate for XRAY X12

Developed through a collaboration between RCTrim and Krazed Builds, the Center Lock Servo Riser Plate is designed to deliver precise servo positioning and improved steering consistency for XRAY X12 pancar platforms.

This riser plate is engineered to work with popular mini race servos including the MKS HV50P, Sanwa SXR, and other similar servos that utilize OEM horizontal mounting tabs. The design precisely centers the servo output spline on XRAY X12 chassis (model years 2023 - 2026), allowing steering links to be equal length for improved toe accuracy, bump steer consistency, and balanced steering throw.

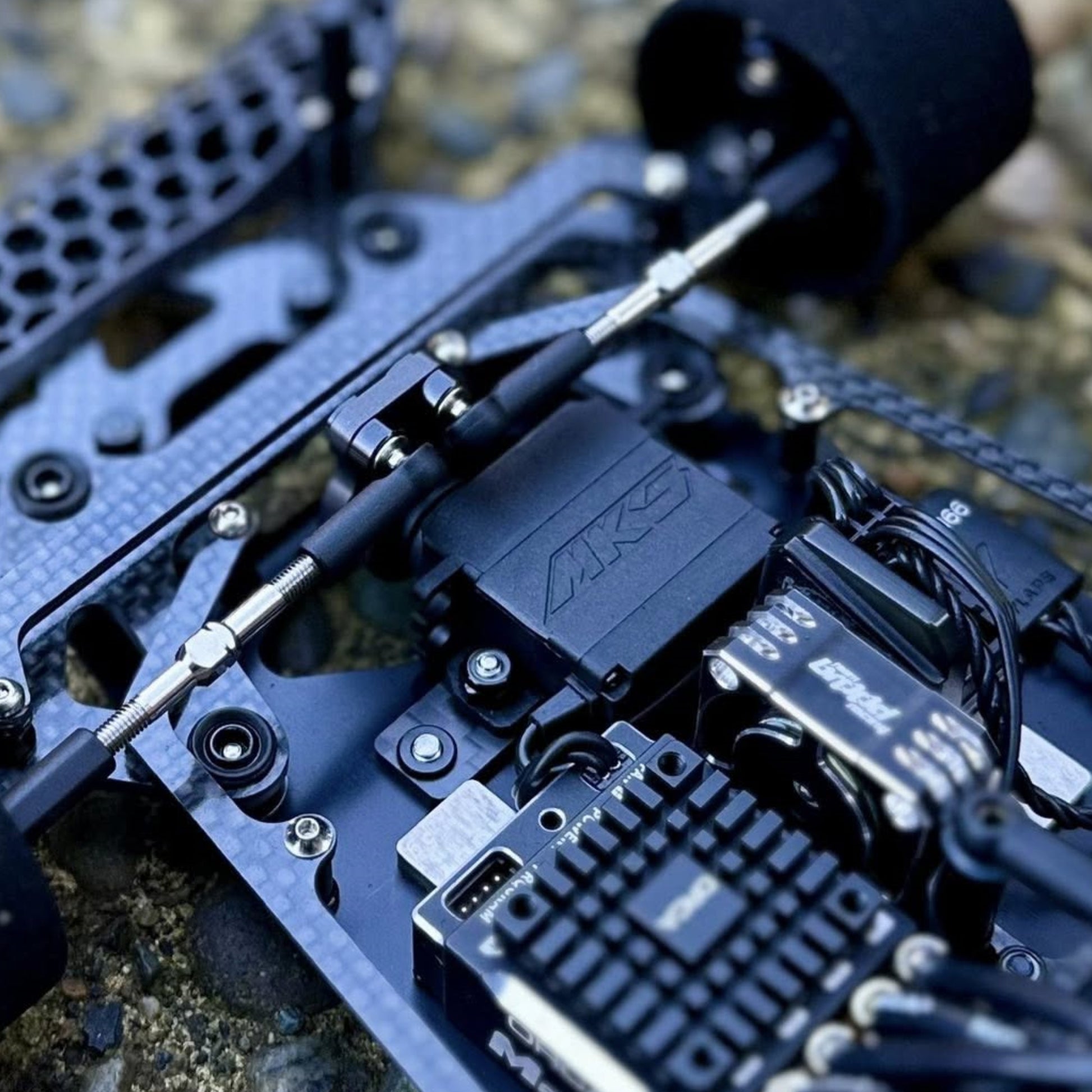

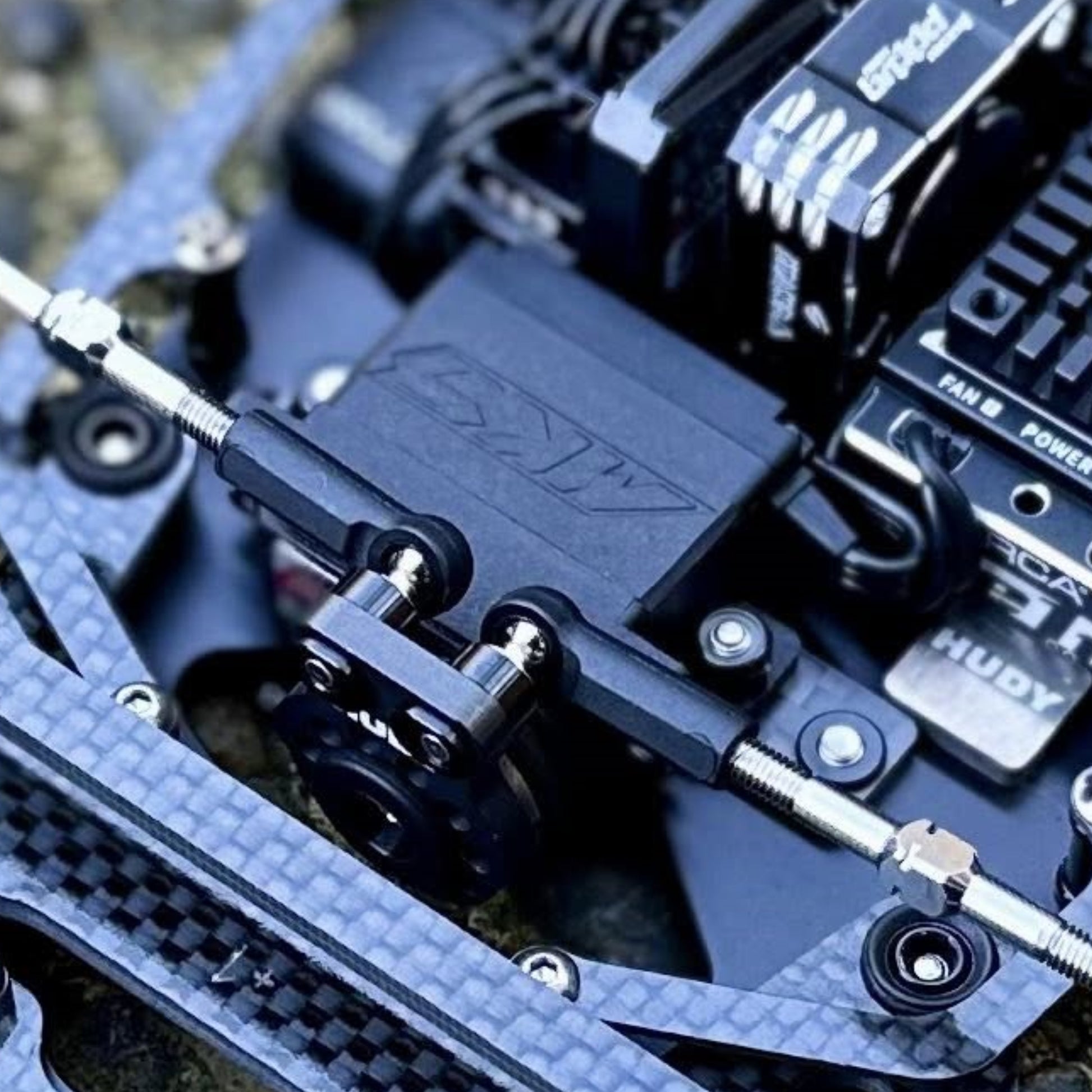

The riser plate also positions the servo at the ideal height so the XRAY OEM servo saver sits perfectly flush with the bottom of the chassis. This maintains the lowest possible center of gravity while improving steering efficiency and feel.

Beyond geometry improvements, the rigid mounting design provides increased servo support during impacts and reduces flex under load. The result is a more direct and consistent steering response that racers can trust in high-grip and high-speed racing conditions.

Designed for repeatable setup accuracy and race-proven performance, this part delivers a simple but highly effective steering upgrade for serious XRAY X12 racers.
